Series 2000

THEAM Precaster

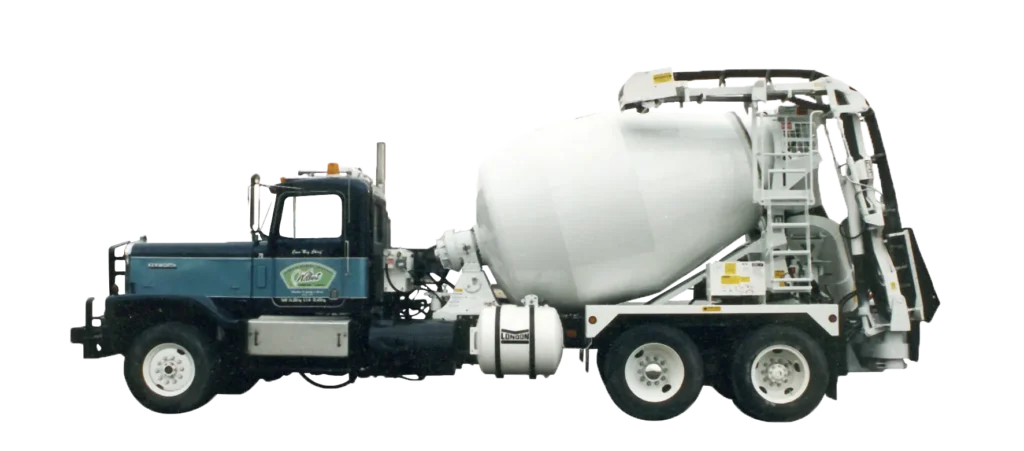

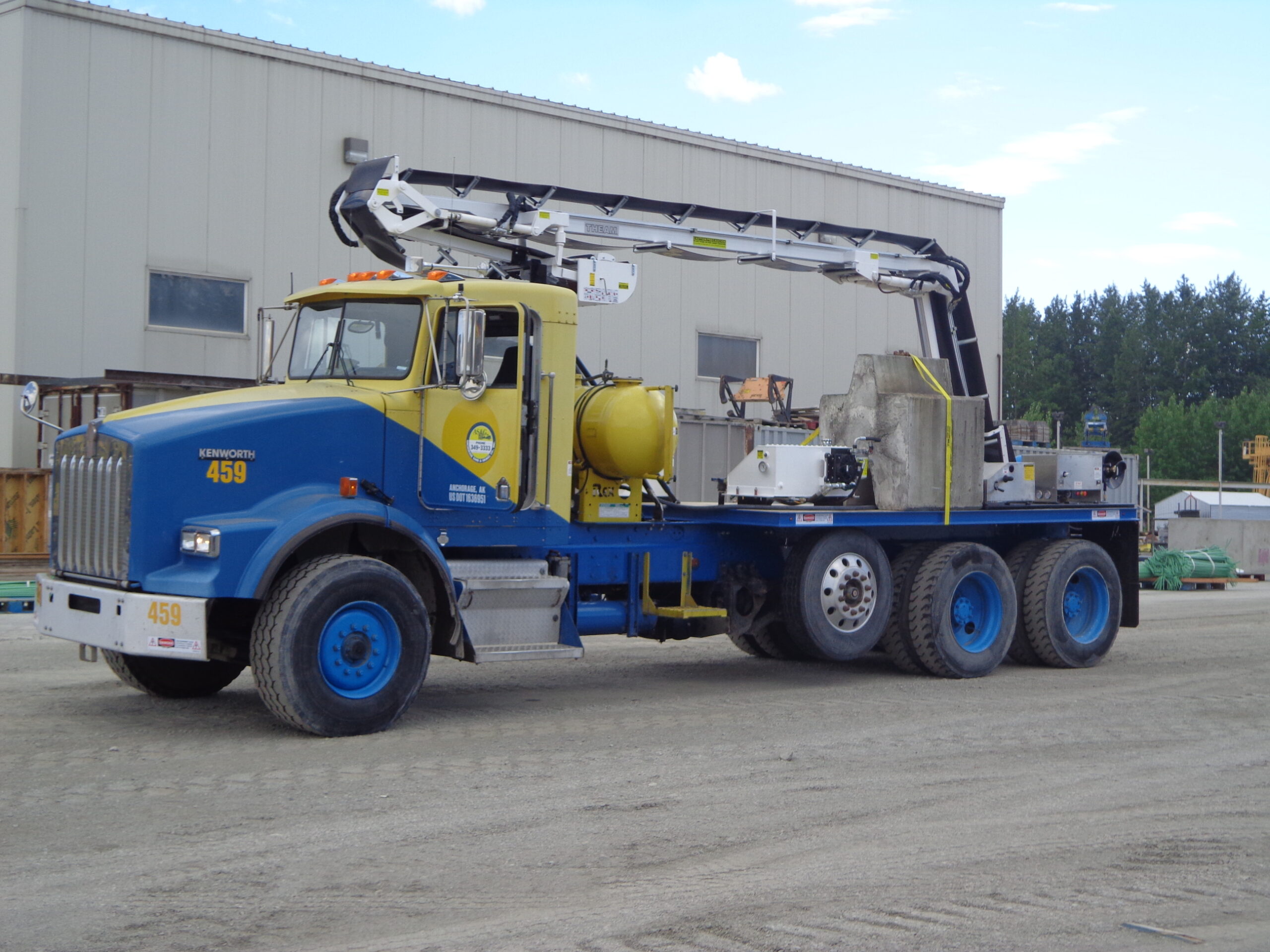

Precaster MEET THE SHORTEST CONVEYOR IN THE LINE UP. This conveyor was developed particularly for Precast operations needing to feed forms at a constant height or reach. Slimmed down to a two boom conveyor and built to spec, this is a great choice for certain applications in the Precast industry. When confined to the yard, this model won’t require all features and pared down is a very economical solution.

Conveyor Specifications

Maximum Discharge Reach
20 - 42ft
Maximum Discharge Height
11 - 25ft
Maximum Rotation
320º
Maximum Discharge Rate
85cu yds/hr
Maximum Operation Pressure
2700psi
Belt Speed, Variable
0-9ft/sec
Belt Support System
Idler Rollers
Total Weight on Truck
3000 - 3800lbs

Work Smarter for Your share of the Placing Profit Pie

Offer THEAM placing and you offer a Smart Alternative to pouring everything between what your chute can reach and the need for a concrete pump. That’s a lot of jobs.
