Series 6500

THEAM TLS/DT

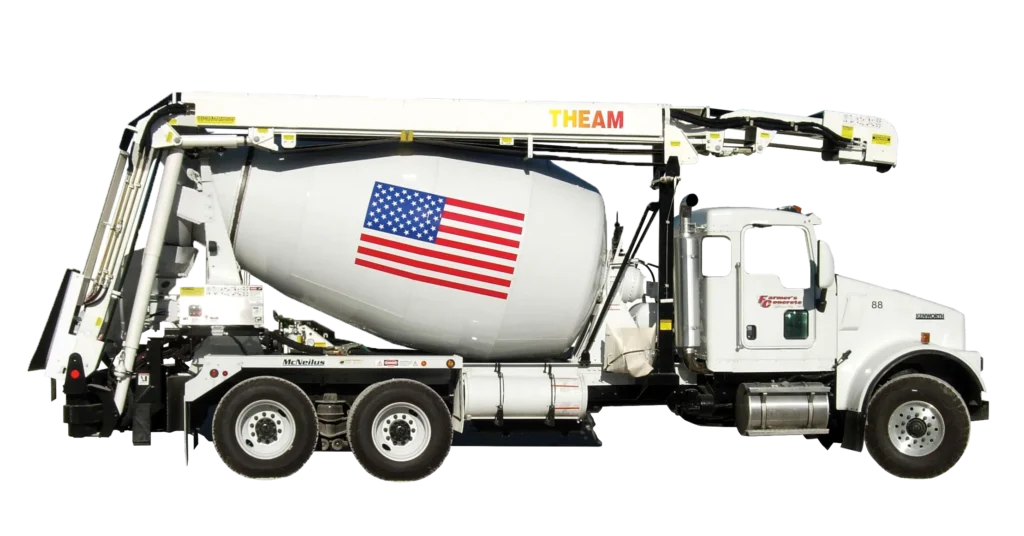

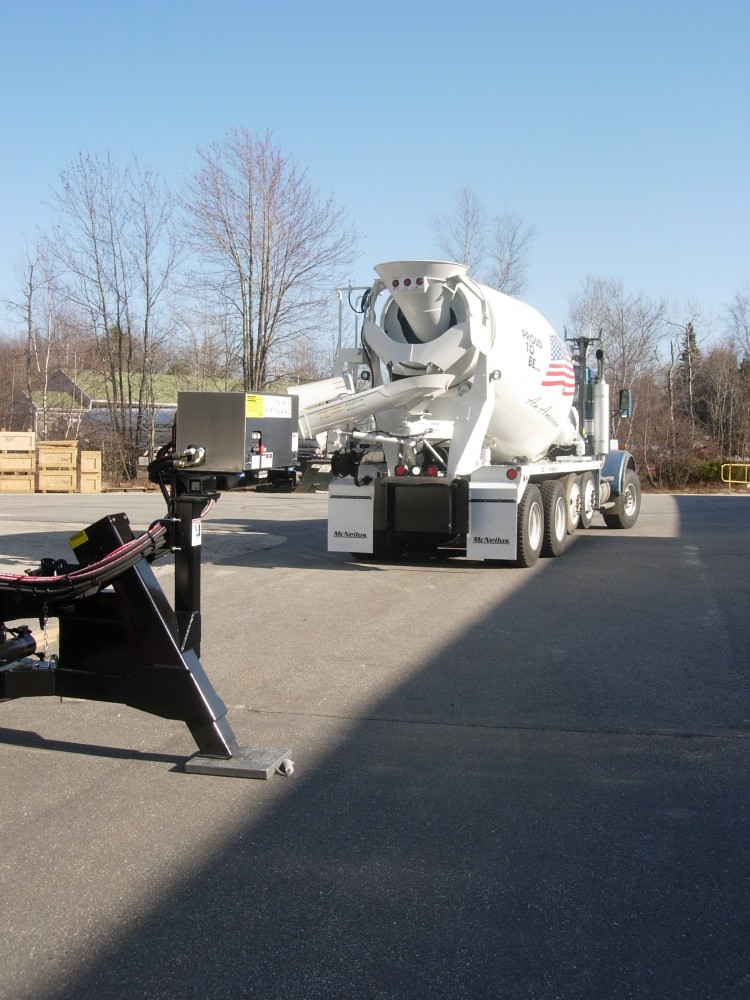

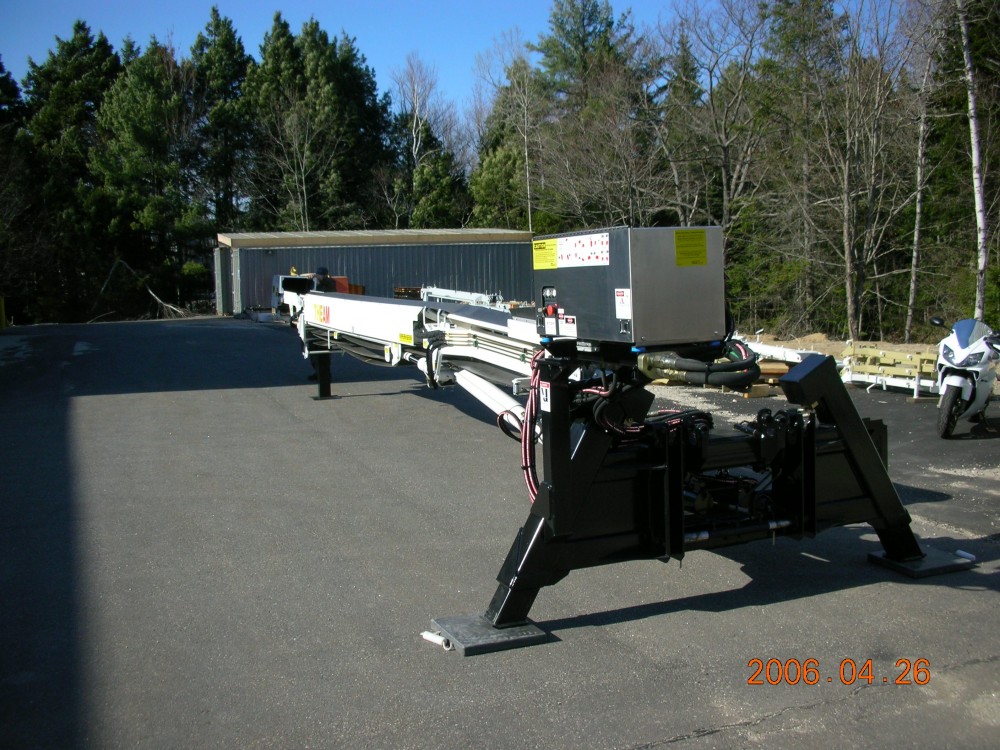

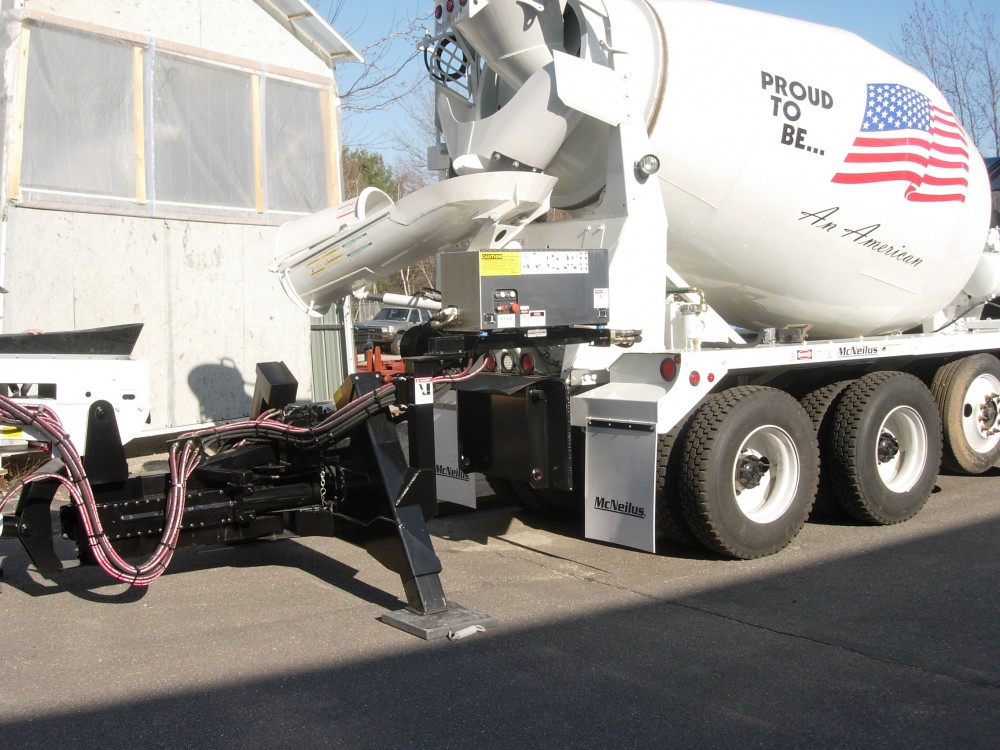

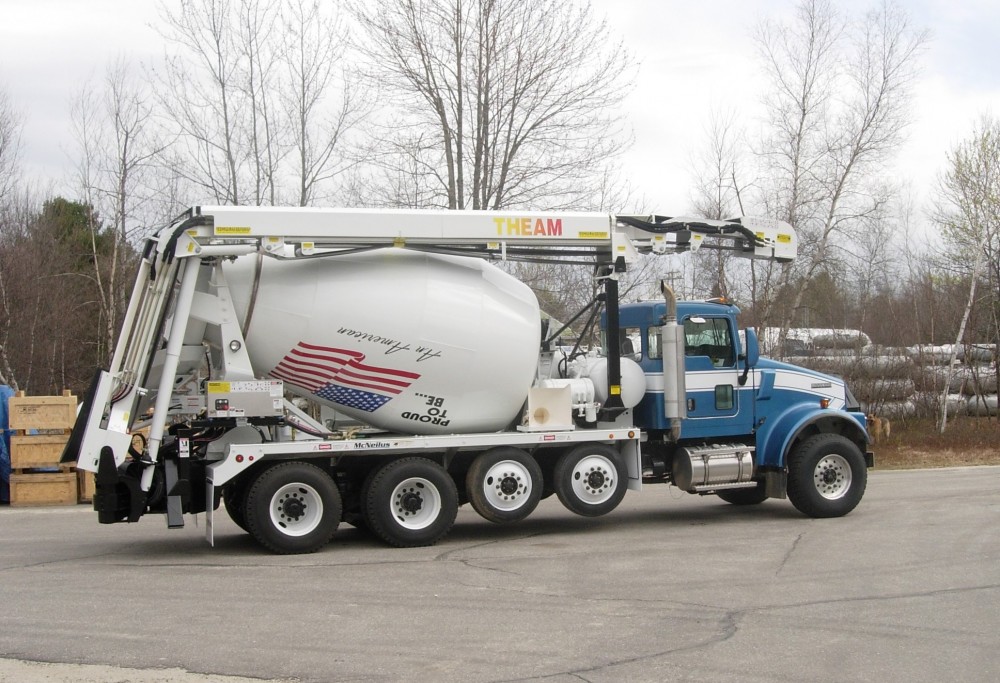

TLS/DTdetachable MEET THE MOST VERSATILE OPTION IN THE LINEUP. This conveyor offers a use it or park it feature, it’s (D) detachable. This conveyor was introduced originally to accommodate drivers who owned their own mixer trucks. If the job required placing, they had the placing capacity. If the job was pouring into a pump or simply hauling, the conveyor could be removed to not penalize pay-load. Conveyors are in constant demand but this feature may be a good choice for particular jobs or operations.

Conveyor Specifications

Maximum Discharge Reach
52ft
Maximum Discharge Height
30ft
Telescopic Range
35-52ft
Maximum Rotation
320º
Maximum Discharge Rate
85cu yds/hr
Maximum Operation Pressure
3000psi
Belt Speed, Variable
0-9ft/sec
Belt Support System
Sliders
Total Weight on Truck
6600lbs

Work Smarter for Your share of the Placing Profit Pie

Offer THEAM placing and you offer a Smart Alternative to pouring everything between what your chute can reach and the need for a concrete pump. That’s a lot of jobs.
