Series 3500

THEAM Ontario

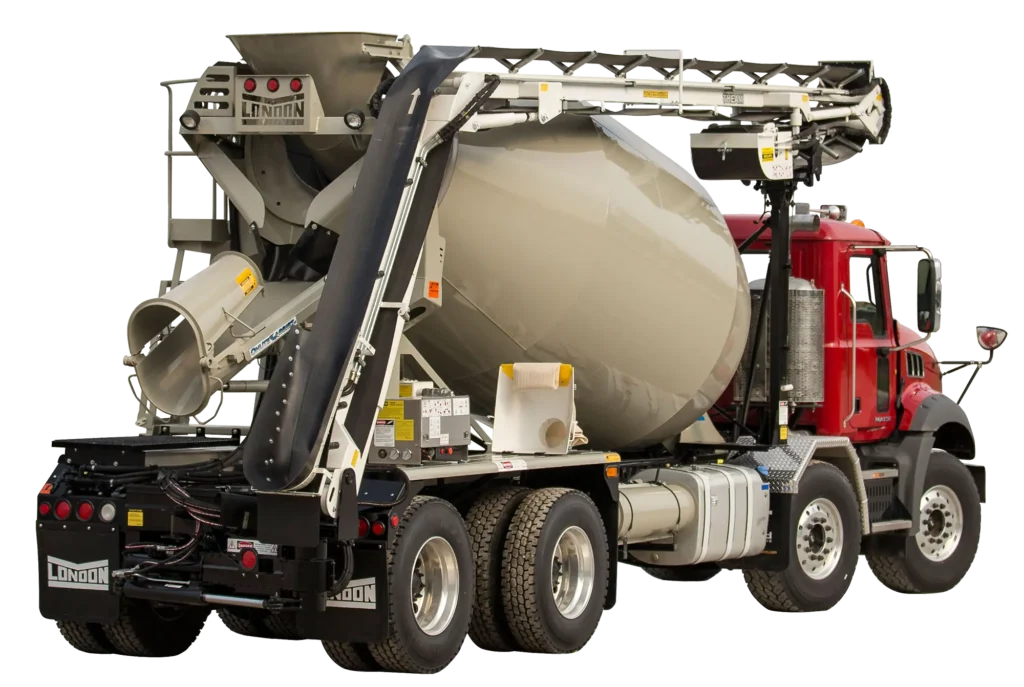

42Ontario MEET THE CANADIAN CONFIGURATION IN THE LINE UP. This conveyor is a 42S designed to optimize placing for the wheelbase and twin steering axle trucks common in the region.

Conveyor Specifications

Maximum Discharge Reach
42ft
Maximum Discharge Height
25ft
Maximum Rotation
320º
Maximum Discharge Rate
85cu yds/hr
Maximum Operation Pressure
2700psi
Belt Speed, Variable
0-9ft/sec
Belt Support System
Idler Rollers
Total Weight on Truck
3600lbs

Work Smarter for Your share of the Placing Profit Pie

Offer THEAM placing and you offer a Smart Alternative to pouring everything between what your chute can reach and the need for a concrete pump. That’s a lot of jobs.
