Series 6500

THEAM TLD

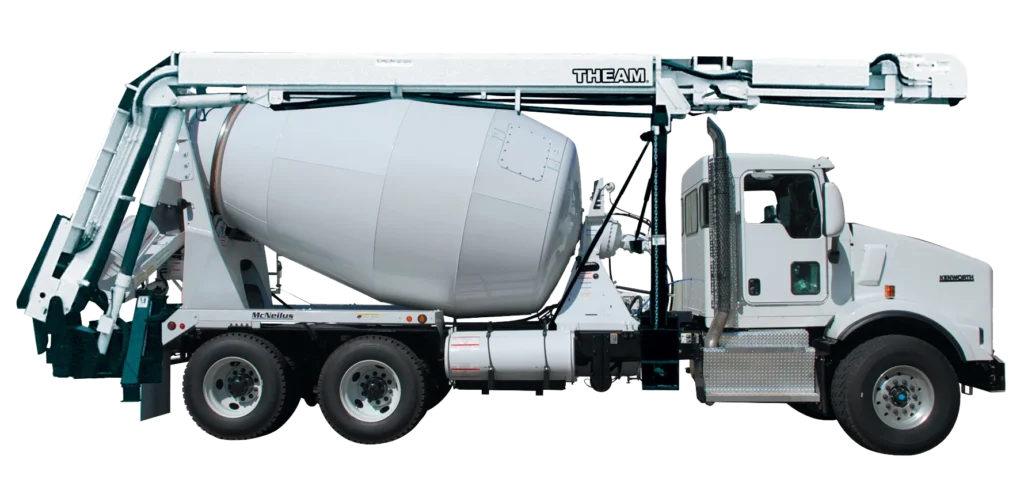

TLDdouble telescopic MEET THE MOST SERIOUS COMPETITION IN THE LINE UP. This conveyor telescopes on both the tip and middle section giving it the MAXIMUM REACH and the MAXIMUM Telescoping Capacity of any other. It can give a concrete pump a run for its money. That’s not the point of any of our conveyors but this model does show teeth. It would be a good choice for the operation that is seasonal, rural or remotely located in places where pumps are few and far between.

Conveyor Specifications

Maximum Discharge Reach
60ft
Maximum Discharge Height
35ft
Telescopic Range
35-60ft
Maximum Rotation
320º
Maximum Discharge Rate
90cu yds/hr
Maximum Operation Pressure
3000psi
Belt Speed, Variable
0-8ft/sec
Belt Support System
Sliders
Total Weight on Truck
6600lbs

Work Smarter for Your share of the Placing Profit Pie

Offer THEAM placing and you offer a Smart Alternative to pouring everything between what your chute can reach and the need for a concrete pump. That’s a lot of jobs.
